Tanker 4000 Litres with Dangerous Goods Approval
A 4000 Litre refuelling vehicle with full DGA compliances to carry diesel or ULP on public roads
Scope of Works: 4,000 Litre Diesel Tanker on Isuzu Cab/Chassis
Australian Fuelling Systems & Equipment will build and fit a 4,000 litre diesel tank and associated equipment to an Isuzu cab/chassis, ensuring full compliance with AS2809 1 & 2 for Road Tankers for Dangerous Goods.
Tank & Mounting
- 4,000 litre capacity, curved head design with elliptical cross section
- Mounted to chassis rails with 4 x TM400 spring-loaded brackets
- Scully-type bottom fill system with overfill protection sensor probe and system wiring
- API400 adaptor with cap at fill point
- API401 bottom load dry break adaptor
- Pneumatically operated bottom valve
- Pneumatic interlock bar over API for vehicle immobilisation during filling/dispensing
- Scully-compatible overfill protection system
- No height safety rails required; hatch and equipment located at tank end for easy access from rear deck
Pump & Dispensing System
- Alfons Haar pump, direct coupled to gearbox
- NMI approved meter, built to pattern approval
- DFV100 register with in-cab ticket printer
- Haar pneumatically operated hose reel (20m x 25mm hose assembly)
- ZVA25 automatic nozzle with swivel
- All fittings and pipework welded and pressure tested
- System fitted with pressure gauge
Safety & Compliance
- All required HazChem signs fitted
- In-cab equipment as per AS2809 1 & 2:
- EPG cards & holder
- Eyewash & bracket
- Fire extinguisher (2 x 9kg with brackets)
- Spill kit
- Basic first aid kit
- Flameproof torch
- Operations manual (hard copy and electronic)
- Rear collision protection and step-up for tank top access
- Mudguards and brackets
Additional AS2809 1 & 2 Requirements
- Shrouding of exhaust and hot parts/engine
- Shrouding of lower exhaust pipe if required
- Front splash guarding as per DG approval
- Mechanical engine strangler
- Vehicle wiring to AS2809: flameproof battery isolation switch, interlocked rollover sensor
- Pneumatic interlock to vehicle brake system for immobilisation during filling/dispensing
Testing & Certification
- Dangerous goods approved
Owner to arrange road and EPA registrations - Pumpset verified and sealed for legal resale of fuel

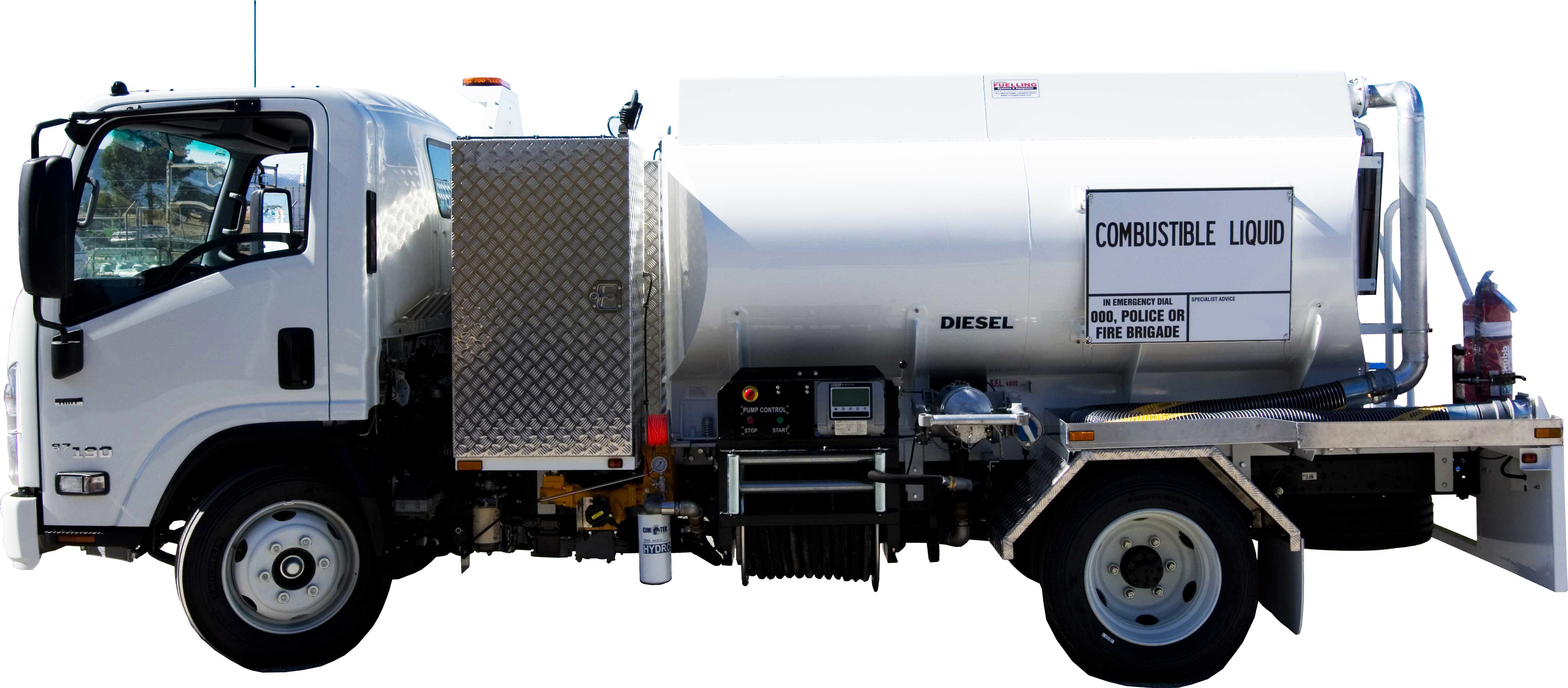

Side view of the tanker showing all dispensing equipment.
Close-up of delivery system with hose reel, LC flow meter, DFV100 electronic register, filtration and fill point drybreak.

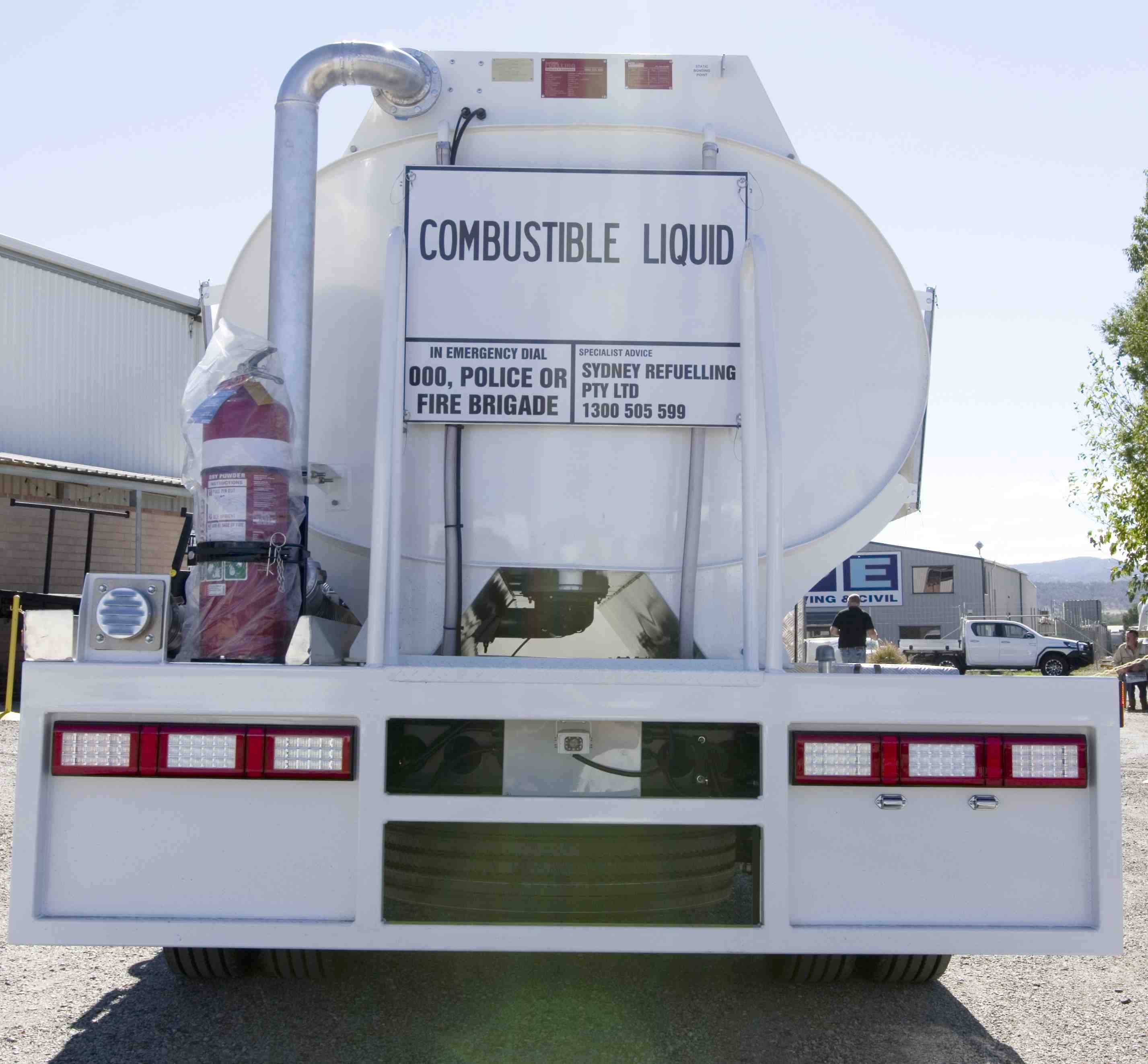

Rear of tanker showing access ladder and vapour recovery piping.
