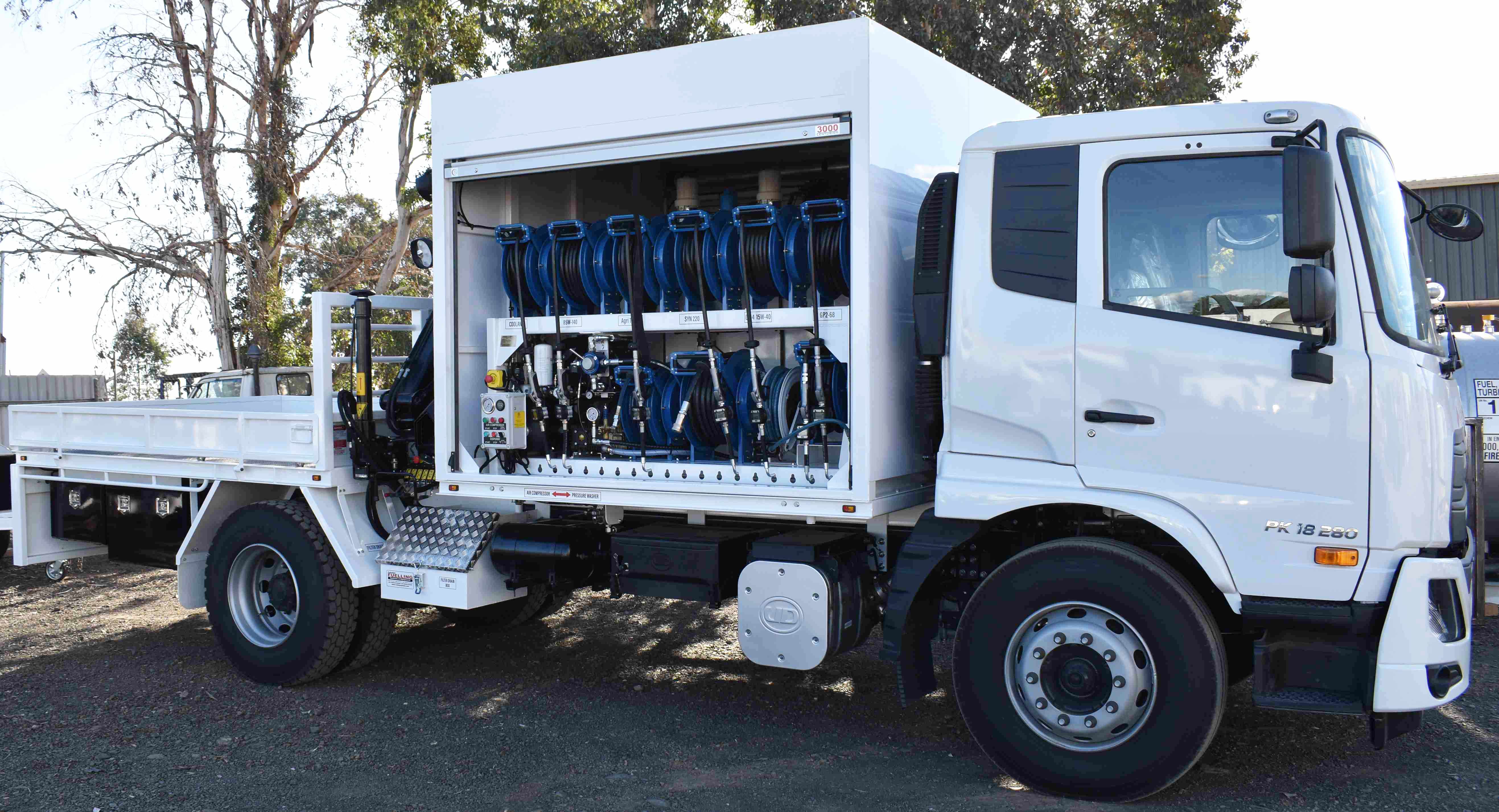

Service Lube Truck – Fluids & Equipment Overview

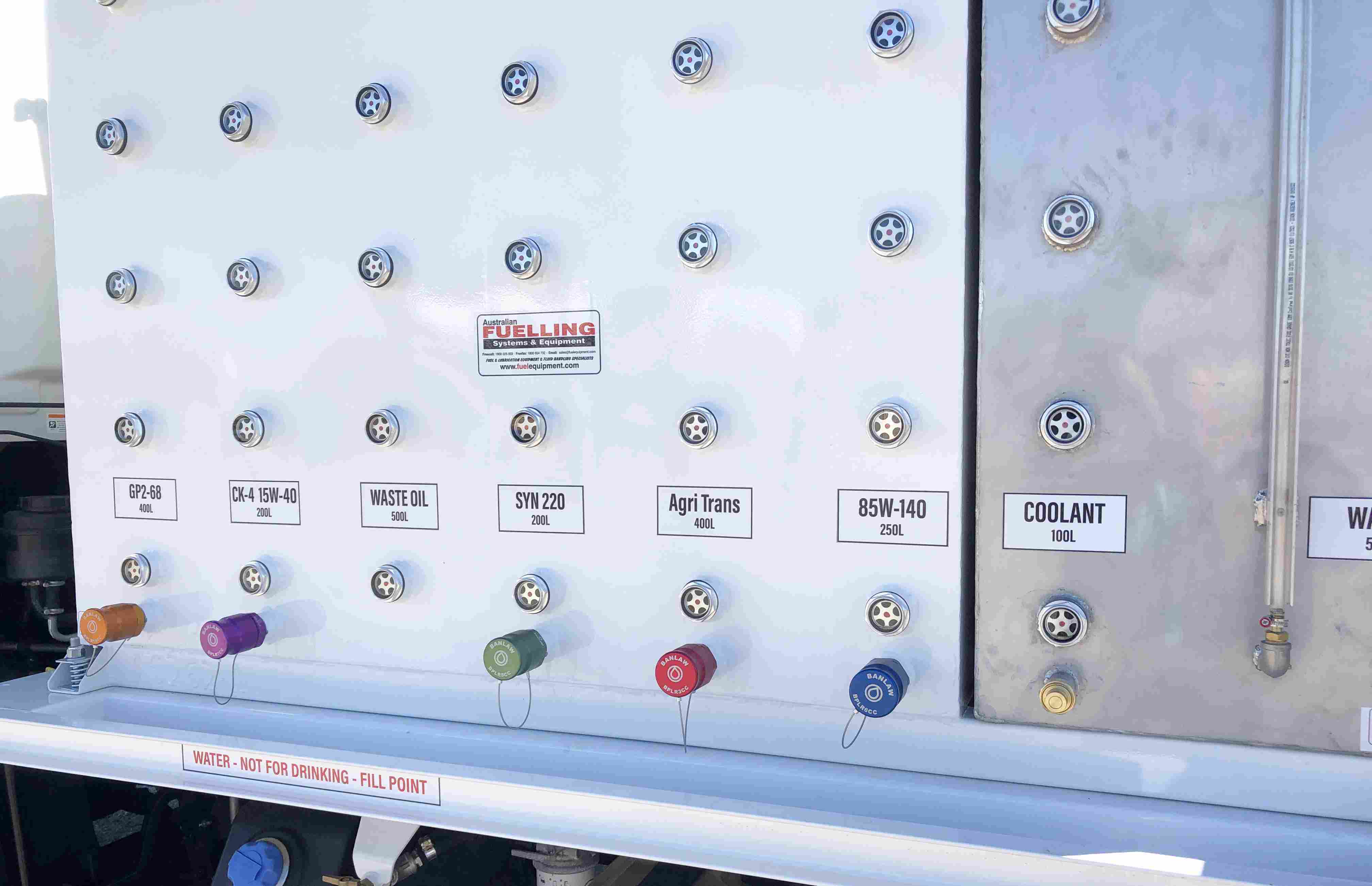

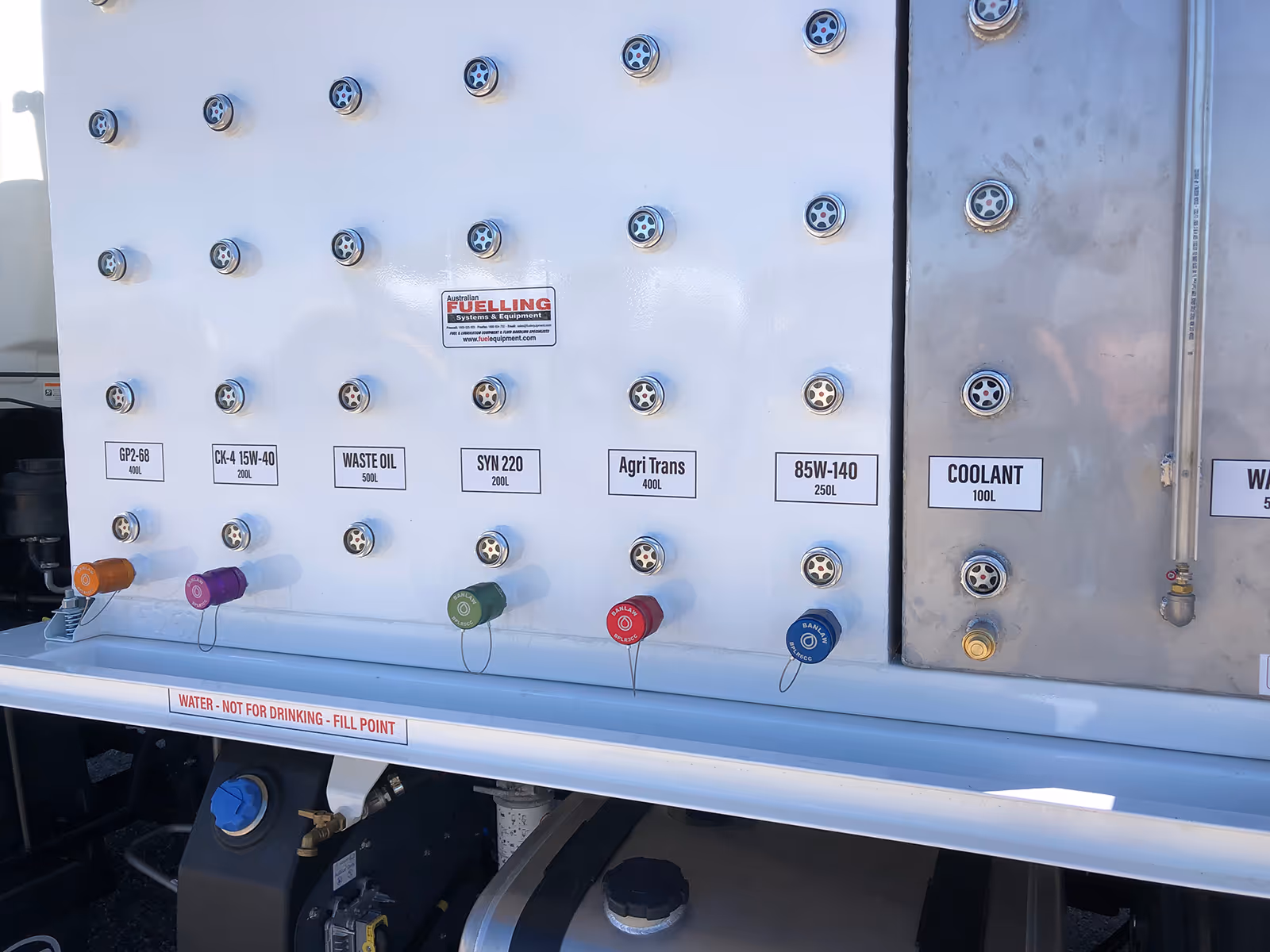

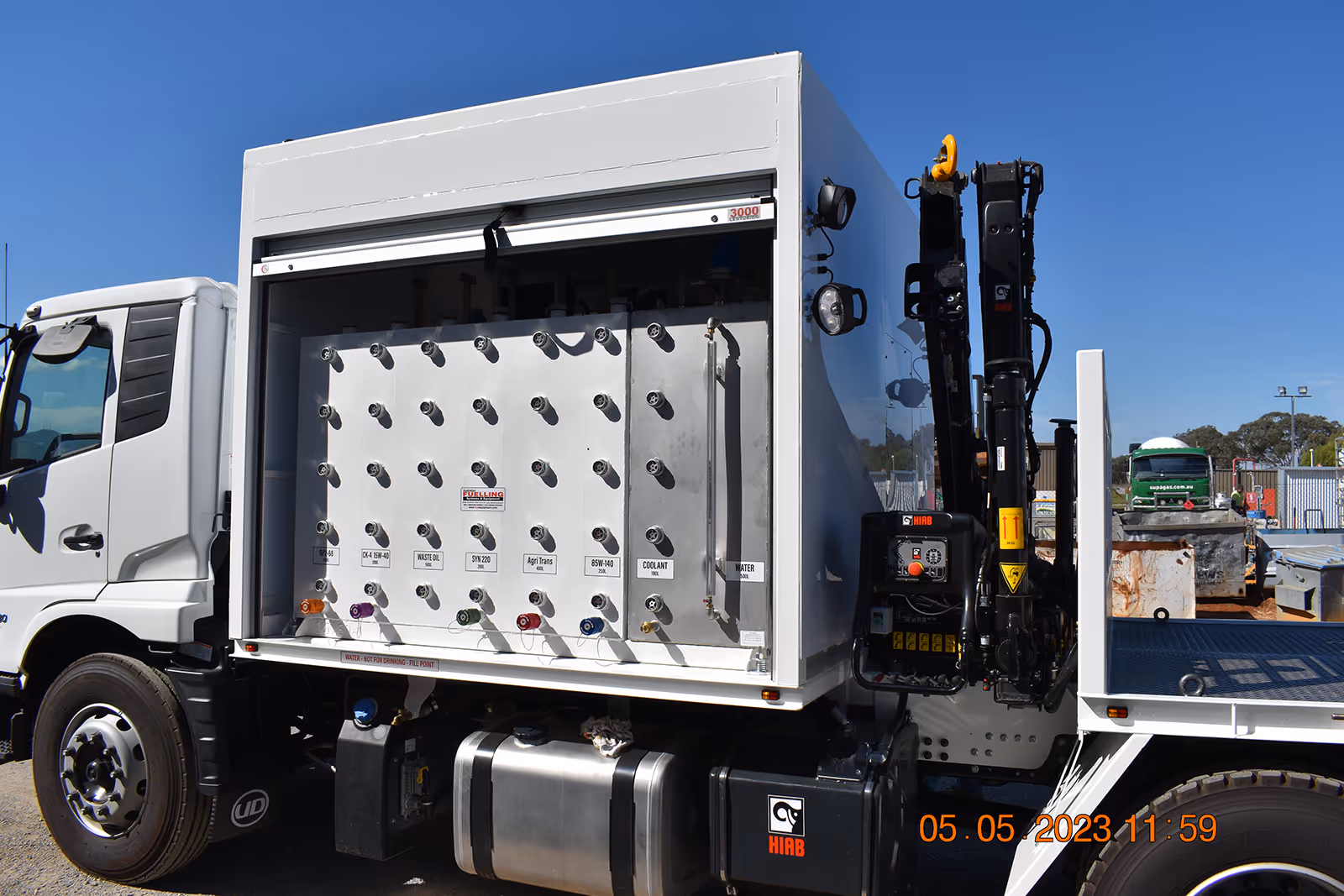

Oil Tanks

• Manufactured from 3mm mild steel
• Each compartment fitted with 5 level sightglasses for easy level checks
• Fittings: pump mount, bottom fill, drain plug, vent
• Each product clearly labelled for identification
• Compartments:
  • Engine oil: 200L
  • Gear oil 1: 200L
  • Gear oil 2: 200L
  • Transmission oil: 400L
  • Hydraulic oil: 400L
  • Waste oil: 400L

Water & Coolant Tanks

• Water: 400L (2mm 304 stainless steel, bottom valve for hose filling)
• Coolant: 100L (2mm 304 stainless steel, Banlaw fill system)

Pumps

• Macnaught T512 for lighter grade oils
• Graco 5:1 pumps for both gear oils
• Macnaught 3:1 pump for coolant

Air Compressor

• Hydraulically driven screw, 60 cfm

Pressure Washer

• Hydraulically driven
• 4000 psi / 20 lpm
• Reel, hose, and turbo lance included

Waste Oil Collection & Offloading

• Piusi MP140 25mm AOD
• Morris rotary flow reversing valve
• Hose reel: 20m x 20mm hose

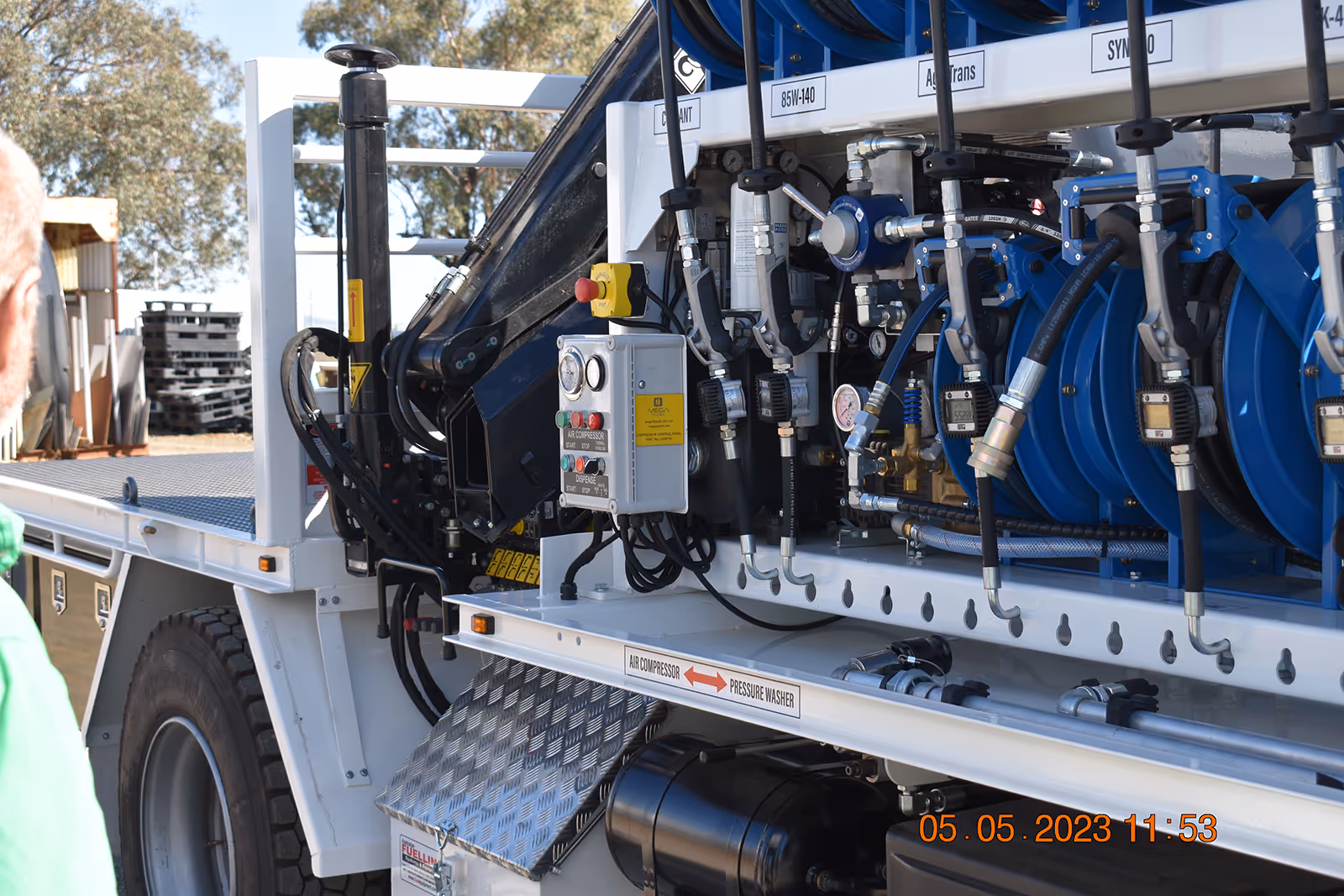

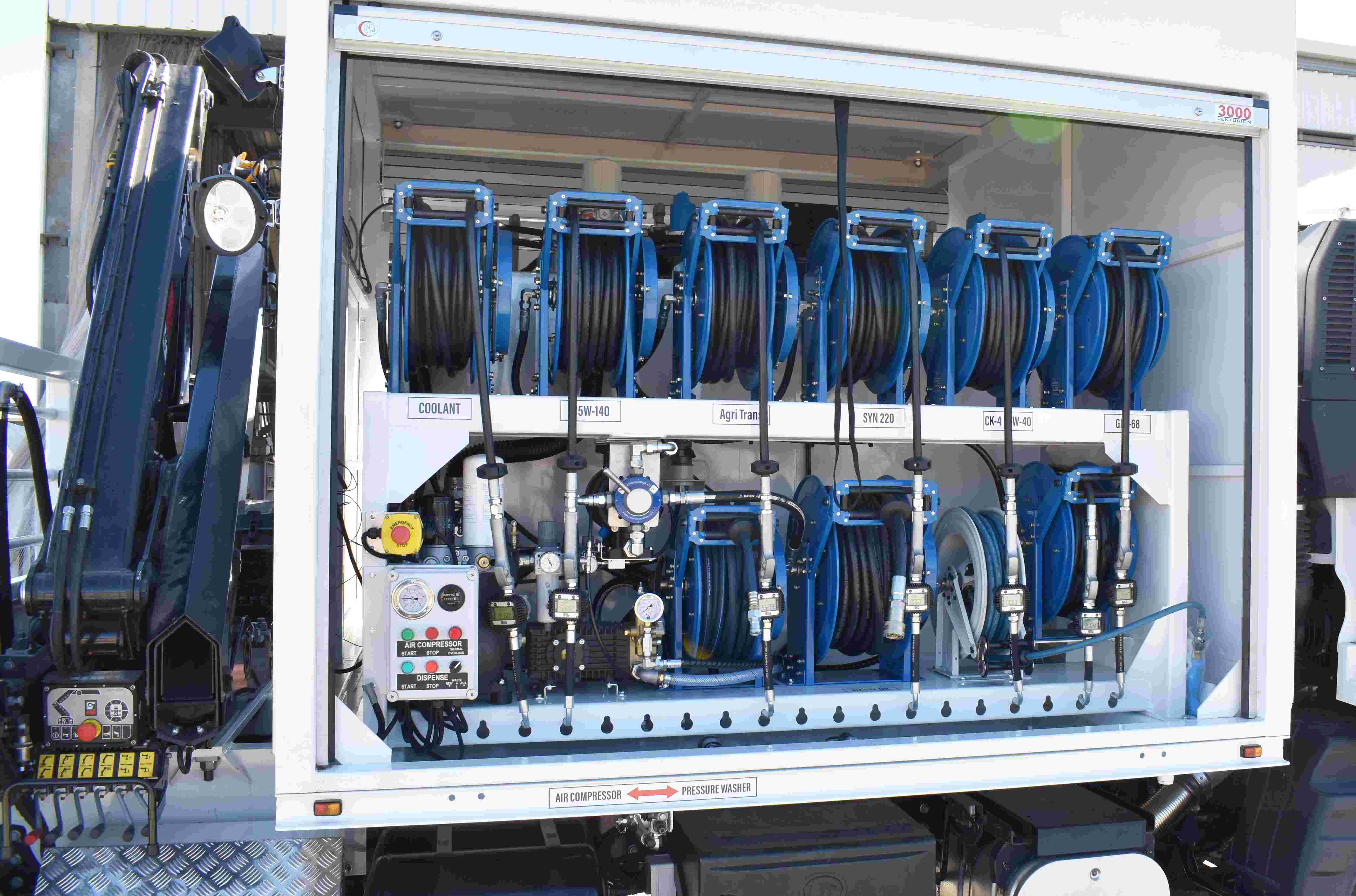

Dispensing

• Macnaught twin pedestal reels, each with control valve and digital flow meter
• Coolant dispensing nozzle (no meter)

Crane

• Hiab 038TA-2 Hi Duo, radio remote controlled
• Lifting capacities:
  • 2360 kg @ 1.5m
  • 1400 kg @ 2.5m
  • 970 kg @ 3.7m

Work Lights

• 2 per side, 2 rear-facing
• In-cab switching

Hydraulics

• HYD75K-24V-12cc
• Configured to run pressure washer at 70% duty cycle

‍
